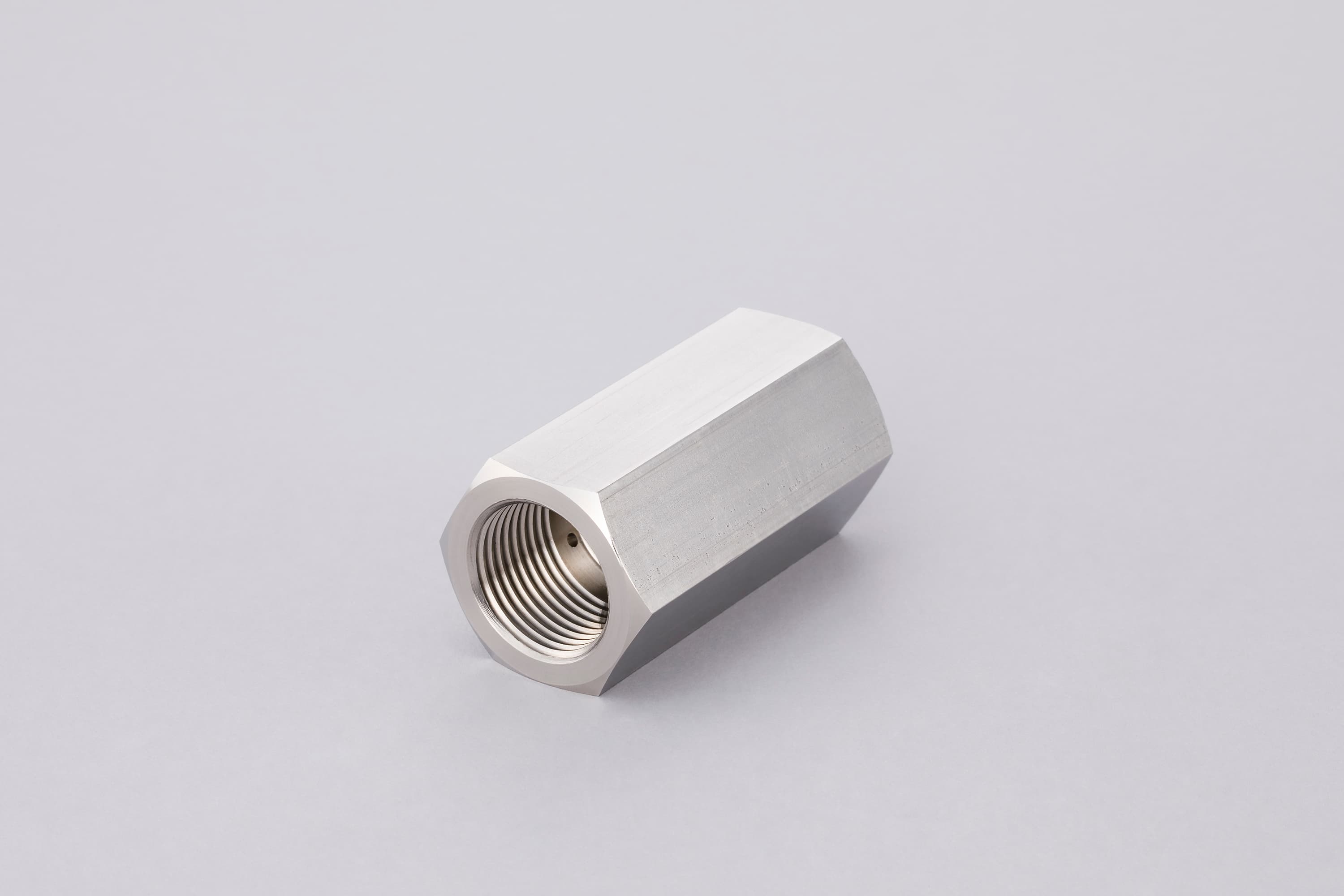

Adaptor / Connector
Overview
These adapters allow seamless connection between your calibration systems and gas cylinders or regulators. Models include CG1-11 through CG1-17, matching various interface standards (ISO12209, CGA346, CGA347) and compatible with extreme pressure conditions (up to 300 bar) to support accurate and secure gas calibration setups.
Key Feature
Multiple interface types for broad compatibility
High-pressure rated—up to 300 bar
Durable, precision machined construction
Ideal for compressed air calibration setups
Technical Specifications
| Adaptor Model | Connector Type | Pressure Rating |
|---|---|---|
| CG1-11 | ISO12209 Female → ISO12209 Female | 232 bar |
| CG1-12 | ISO12209 Female → ISO12209 Female | 300 bar |
| CG1-14 | CGA347 Female → ISO12209 Female | Standard |
| CG1-15 | CGA347 Male → ISO12209 Female | Standard |
| CG1-16 | CGA346 Female → ISO12209 Female | Standard |
| CG1-17 | CGA346 Male → ISO12209 Female | Standard |
How to Use Adaptor / Connector
Select Compatible Adaptor
01- Identify which interface type matches your cylinder or regulator.
- Choose the corresponding adaptor model (e.g., CG1-11 for ISO12209 fittings at 232 bar).
Connect Securely
02- Attach the adaptor to the calibration gas source and tighten gently using appropriate tools to ensure a gas-tight connection.
- Check for leaks (using soapy solution or leak detector).
Verify & Use
03- Proceed with the calibration process once safely secured.
Need Quick Gas Analysis?
Reach out now to request a quote, explore bulk pricing, or arrange a product demo.
Related Products

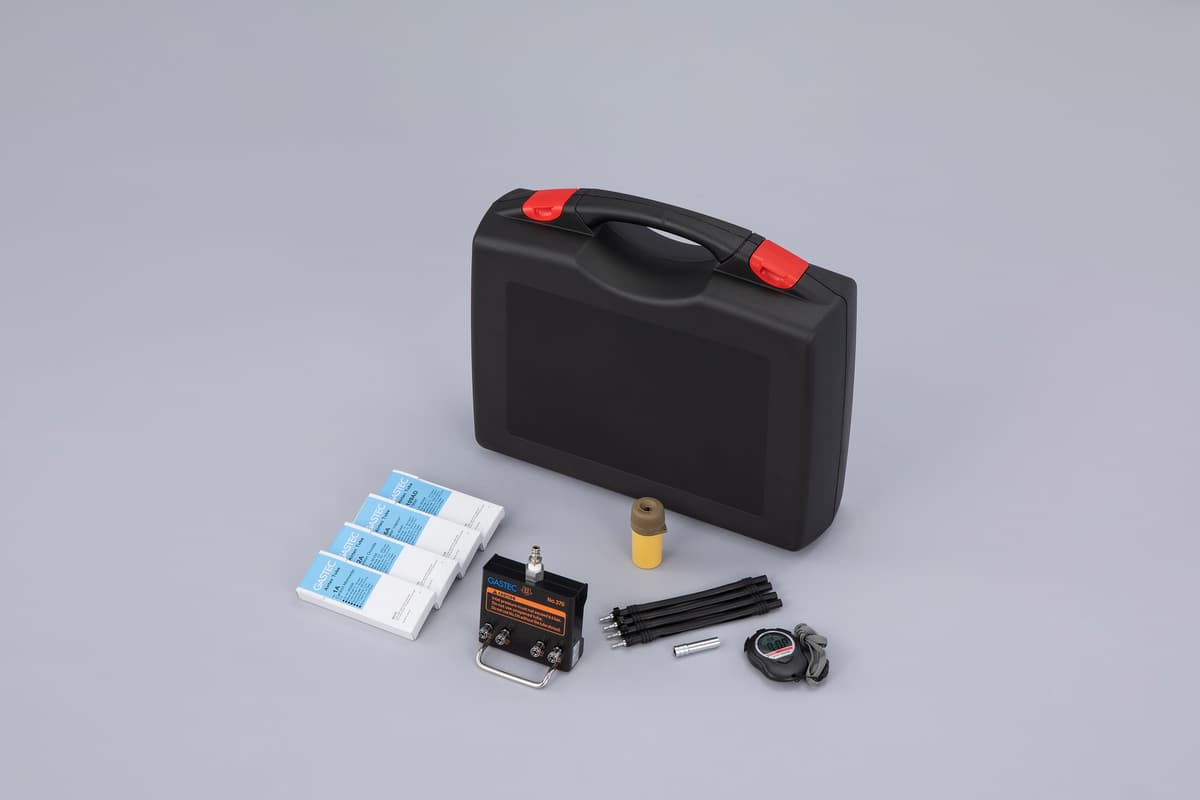

GASTEC Compressed Breathing Air Measurement Kit CG-1
