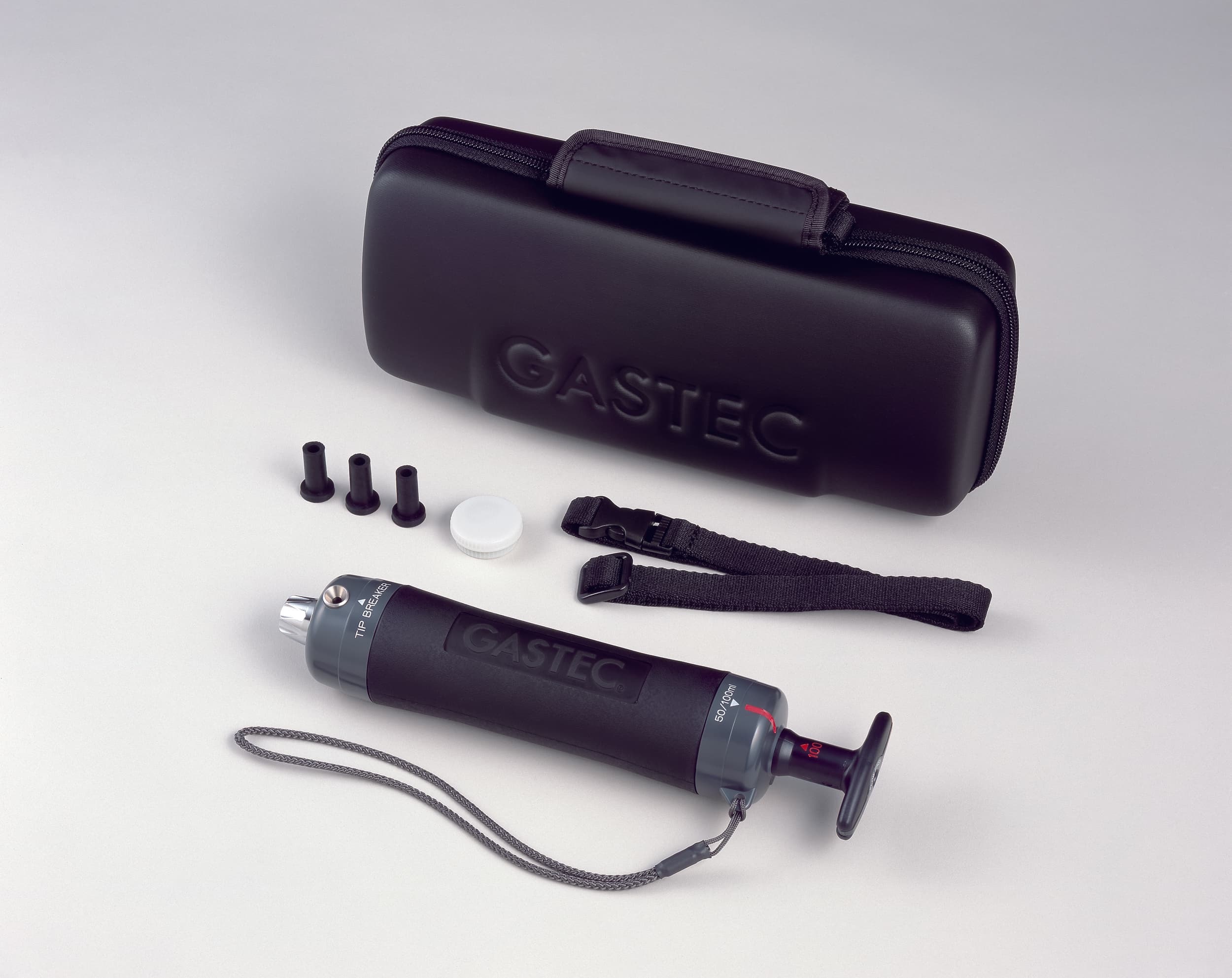

Gas Sampling Pump GV100S/GV100LS/GV110S.
Overview
The GV-100S Hand Pump is a manual gas sampling device specifically designed to be used with GASTEC detector tubes. Built with durability and ease of use in mind, the GV-100S ensures that air samples are drawn consistently for accurate detection and measurement of gases and vapors. Its compact design makes it ideal for on-site testing, industrial hygiene surveys, and confined space monitoring.
Download CatalogTechnical Specifications
| Parameter | Details |
|---|---|
| Sample Volume | 100 mL per stroke |
| Pump Type | Piston-type hand pump |
| Material | Durable plastic and metal components |
| Dimensions | Compact and portable for field use |
| Applications | Industrial hygiene, confined spaces, on-site air quality testing |
How to Use Gas Sampling Pump GV100S/GV100LS/GV110S.

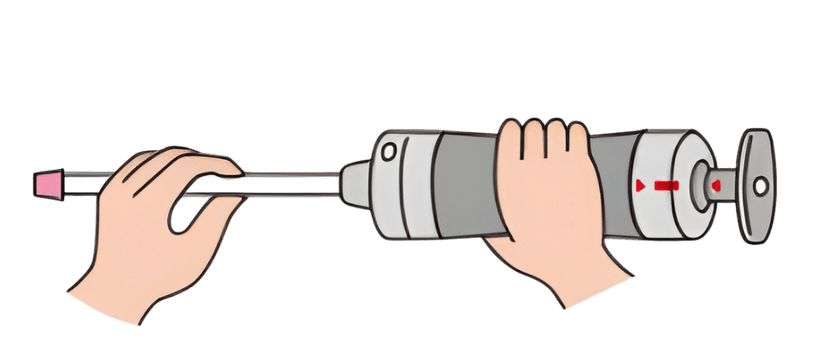

Prepare Pump
01- Insert the detector tube into the pump inlet.
- Break off both tube tips before insertion.

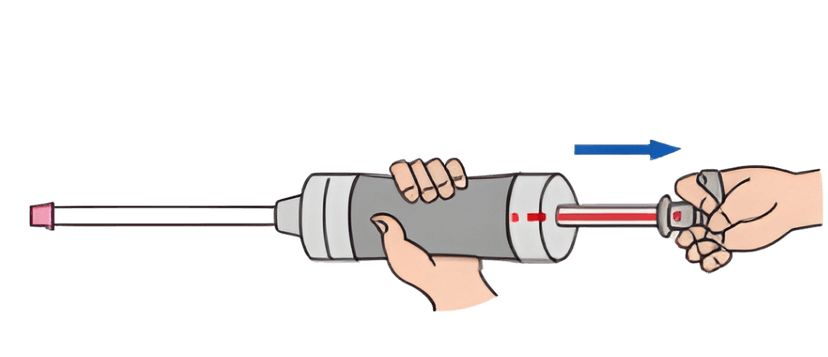

Take Sample
02- Pull the handle back fully to draw one stroke (100 mL).
- Use multiple strokes if required, depending on test conditions.

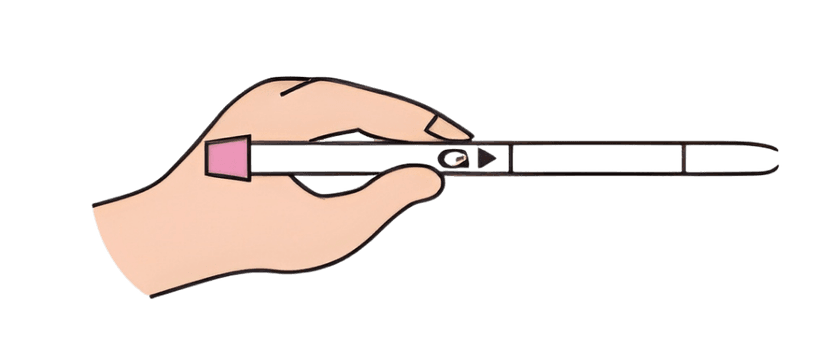

Read Results
03- After the required sampling strokes, remove the tube.
- Compare color change with scale markings to determine concentration.
Airtightness Check
Before you begin sampling, it’s crucial to verify that your sampling pump is airtight—any leaks can compromise measurement accuracy. Here’s a simple check to ensure reliability:

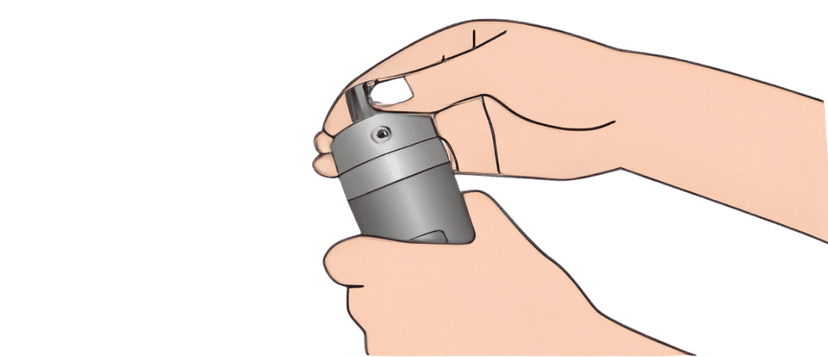

Secure the Inlet
Ensure the inlet nut is firmly tightened

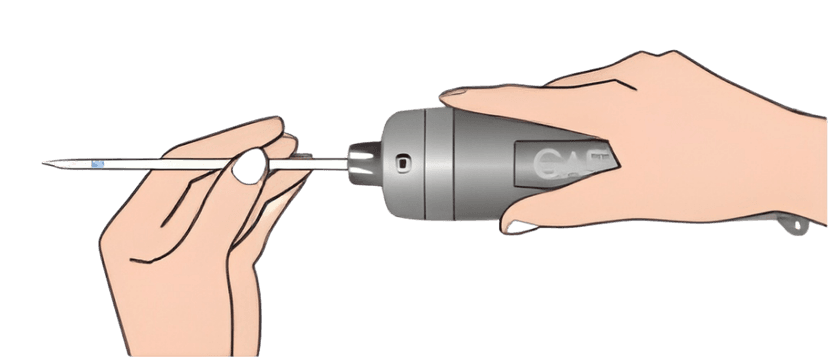

Insert Intact Tube
Place a detector tube (with both tips intact) into the pump’s rubber inlet

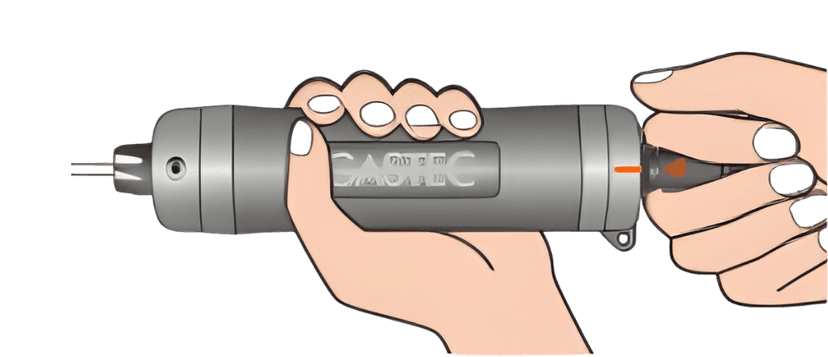

Align Marks
Push the handle fully in, aligning the guide marks (red line on pump body and triangle on handle)

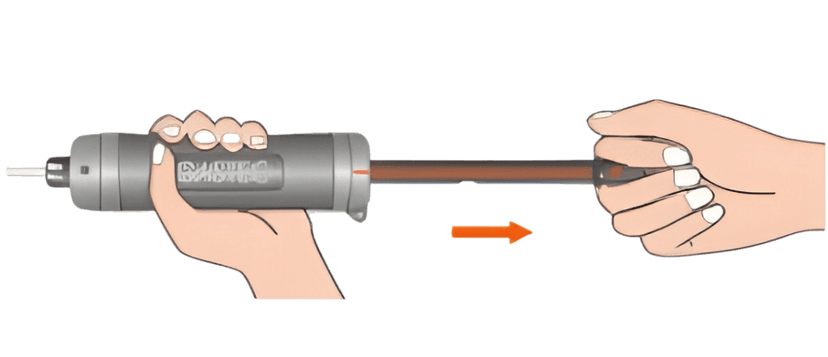

Lock & Hold
Pull out in one motion until locked. Wait approximately 1 minute.

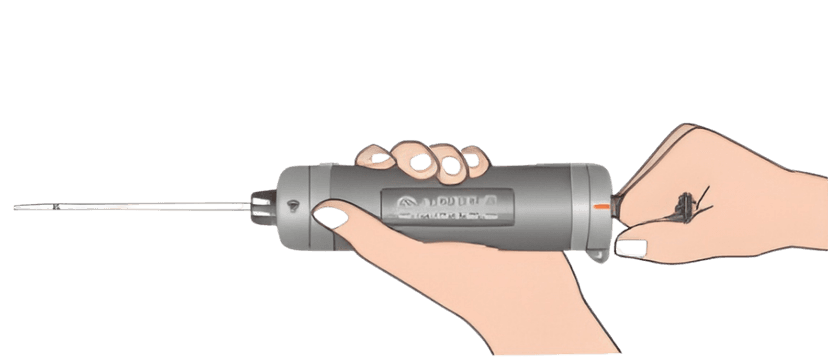

Perform the Test
Twist handle 90°, then release gently. The handle should smoothly return—if the red mark is fully concealed, the pump is airtight.
