H2S Data Logger-GHS-8AT-EX
Overview

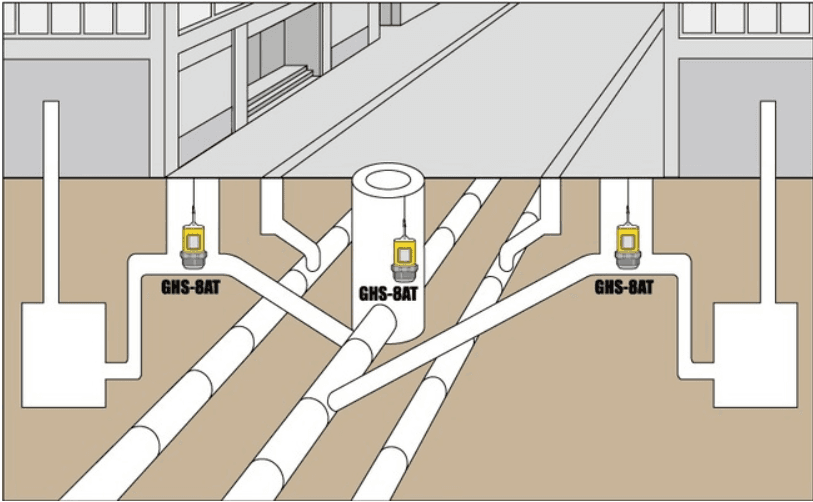

Continuous H₂S monitoring is straightforward, convenient, and dependable. When corrosive hydrogen sulfide forms in sewer systems, it can cause corrosion, leading to rust, unpleasant odors, and, in severe cases, significant damage to buildings and infrastructure. The GHS-8AT-EX data logger enables continuous, reliable monitoring of H₂S levels within the sewer system.
Download CatalogKey Features
| Compact & Lightweight | Easy to carry for field inspections |
| Multi-Gas Detection | Monitors a variety of hazardous gases. |
| Digital Display | Clear, real-time concentration readings. |
| Fast Response Time | Ensures immediate safety alerts. |
| Durable Design | Built for rugged industrial use. |
| User-Friendly Operation | Simple interface for quick sampling. |
Technical Specifications
| Category | Details |
|---|---|
| Target Gas | Hydrogen Sulphide (H₂S) |
| Measurement Principle | Controlled-potential electrolysis sensors |
| Sampling Method | Diffusion |
| Indicating Accuracy | F.S ±5% |
| Measurement Range | 0 – 10.0 ppm / 0 – 100 ppm / 0 – 500 ppm / 0 – 1000 ppm / 0 – 3000 ppm |
| Minimum Resolution | 0.1 ppm / 1 ppm / 1 ppm / 10 ppm / 25 ppm |
| Sensor | H2S-520E, H2S-521E, H2S-522E, H2S-523E, H2S-524E |
| Temperature Measurement Range | 0 – 40 °C |
| Display | LCD (Concentration, temperature, time, recording days remaining, battery capacity) |
| Operating Temperature / Humidity | 0 – 40 °C, 30 – 95 %RH (No condensation allowed) |
| Power Source | Two AA alkaline batteries (LR6 Panasonic / MN1500 Duracell) |
| Battery Life | 3 months (*with normal operation) |
| Backup Battery Life | Lithium battery (5 years)* – Maintains data when alkaline not connected |
| Data Logging Capacity | 45,960 sets (≈31 days at 1-min intervals) |
| Sampling Intervals | 1min, 5min, 10min, 15min, 30min, 60min |
| Communication Interface | USB 2.0 |
| Dimensions | Ø89 × 148 mm |
| Weight | 390 g |
| EU Directives | 2014/34/EU (ATEX), 2014/30/EU (EMC), 2011/65/EU (RoHS), (EU)2015/863 (RoHS), (EU)2023/1542 (Battery) |
| Marking (ATEX) | II 2G Ex ia II B T3 Gb |
| Marking (IEC Ex) | Ex ia 2 B T3 Gb |
| Certificates | ATEX: DEKRA 14ATEX0135 / IECEx: DEX 14.0085 |
| Standards (ATEX) | EN IEC60079-0:2018, EN60079-11:2012 |
| Standards (IEC Ex) | IEC60079-0:2017, IEC60079-11:2011 |
| Standards (EMC) | IEC60079-0:201EN50270:2015, EN55032:2015+A11:2020+A1:2020, EN55035:2017+A11:20207, IEC60079-11:2011 |
| Standards (RoHS) | EN IEC63000:2018 |
How to Use H2S Data Logger-GHS-8AT-EX

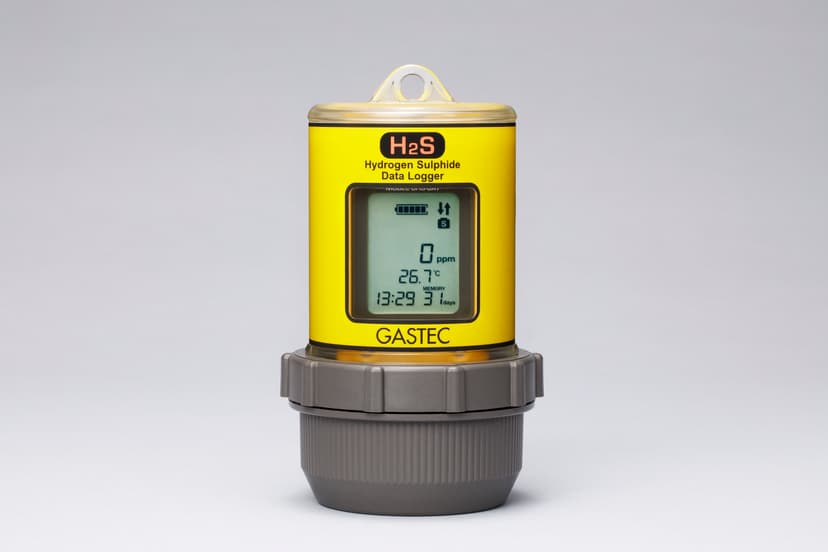

Checking Device Status
01- Large display shows H₂S concentration, temperature, and remaining battery.
- Sensor calibration alerts notify when recalibration is needed.
Power Management & Recording
02- Use the power supply and recording switch to conserve energy.
- Freely select start and end points for recording data.

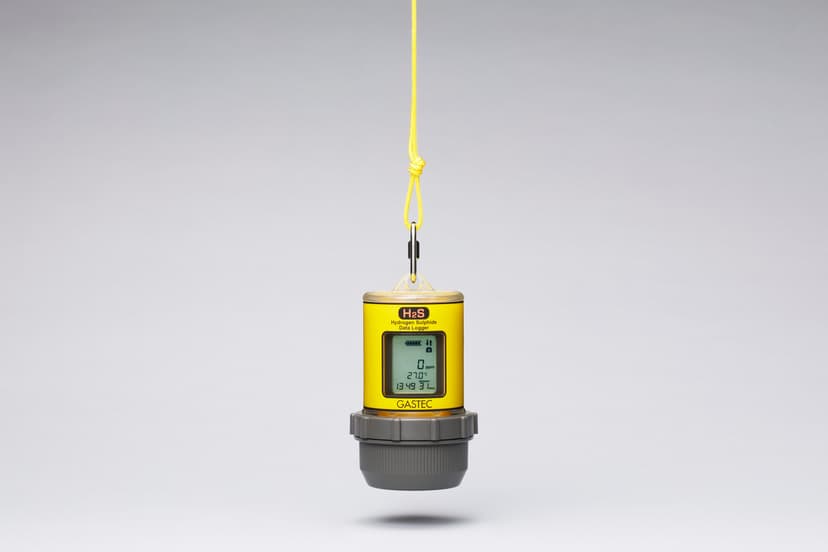

Handling & Maintenance
03- Small and lightweight for easy portability.

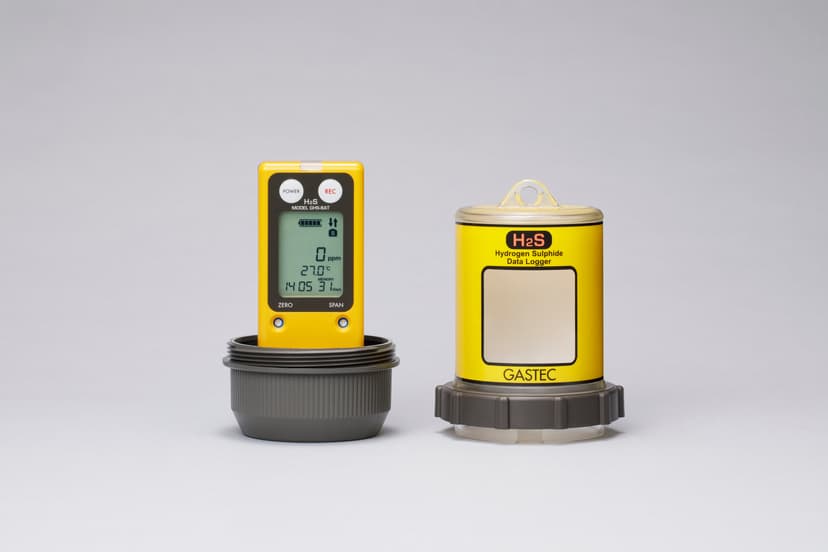

- Outer case can be easily removed for replacement.
Durability Features
04- Enhanced water and corrosion resistance (IP66/67).
- Device is designed to float on water.
Data Logging Capacity
05- Even at 1-minute logging intervals, can store up to one month of data.
- Suitable for various measurement locations and applications.

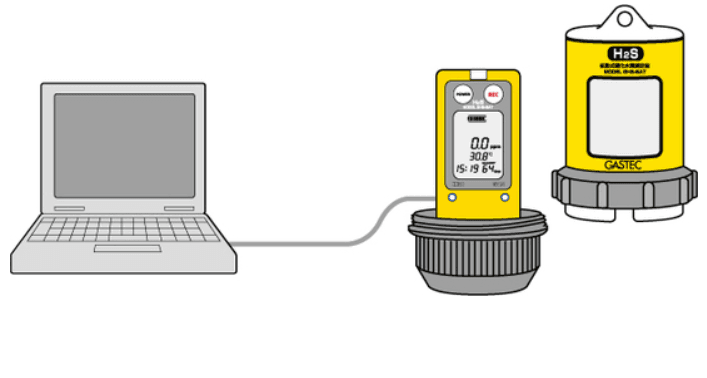

Data Transfer & Processing
06- Connect the GHS-8AT to a PC via USB to read logged data.
- Dedicated software allows graphical display and text file generation.

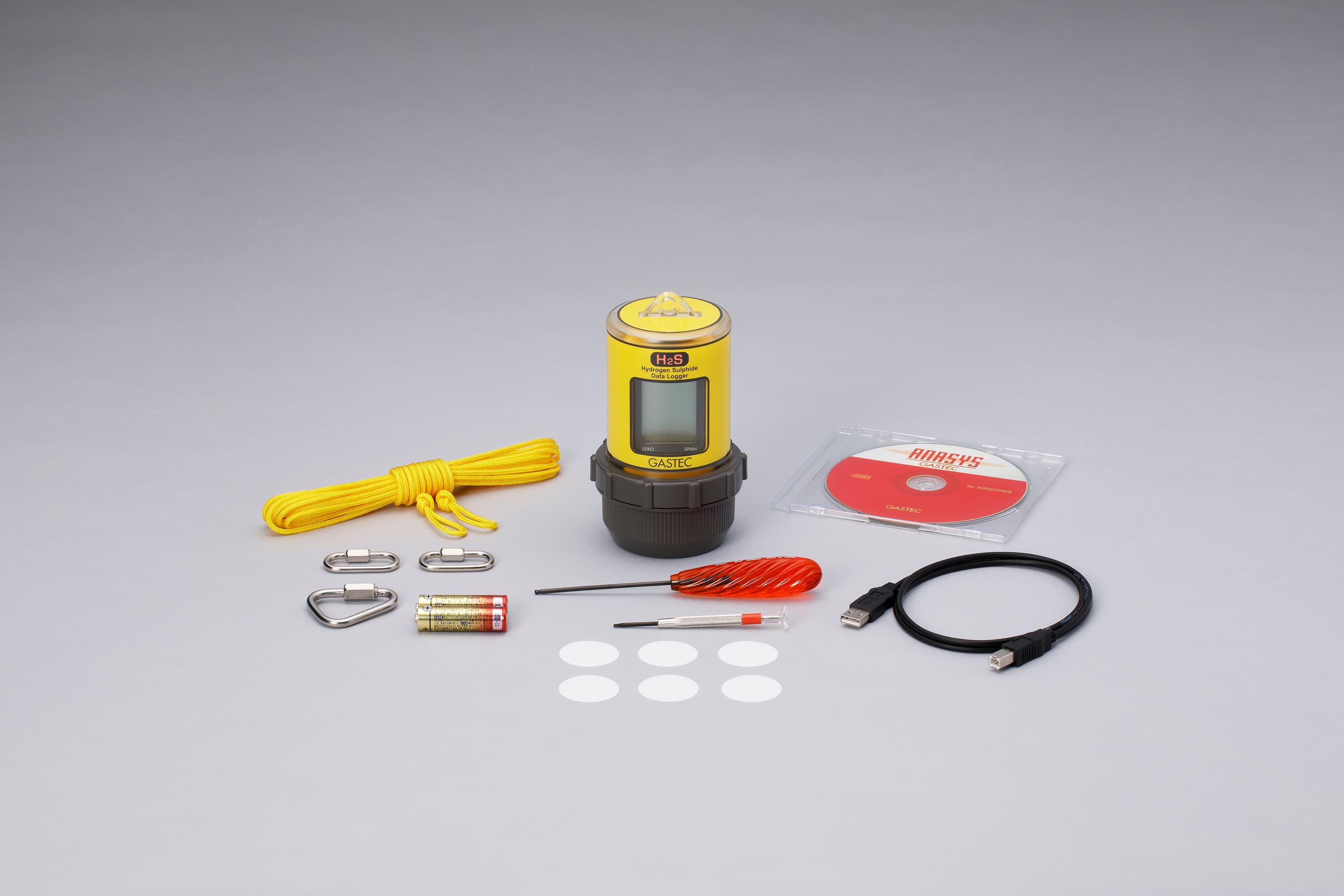

Package Contents
1 × GHS-8AT EX Monitor1 × Sampling Tube1 × Rechargeable Battery & Charger1 × Carrying Case1 × User Manual
