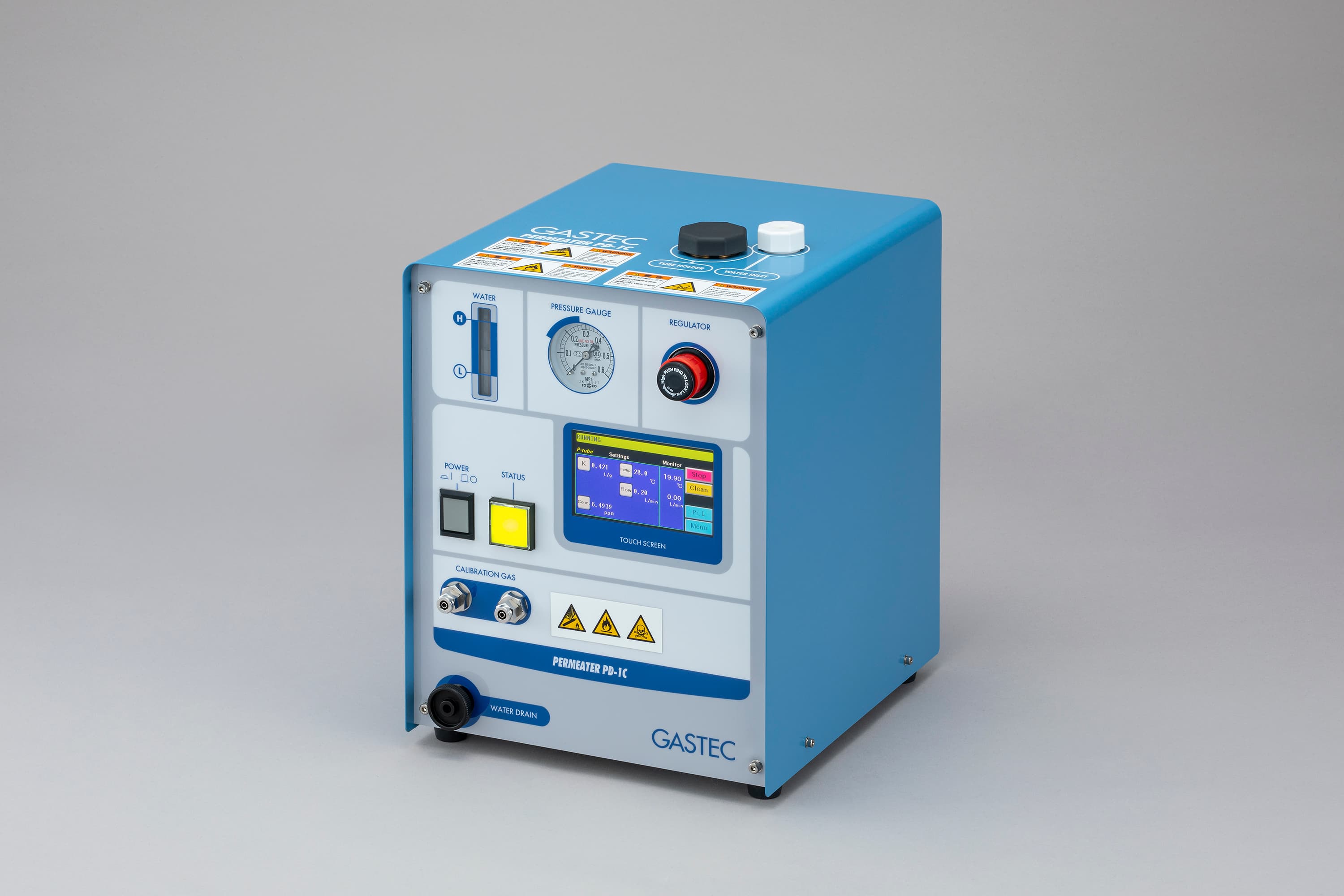

Permeater PD-1C
Overview
The Permeater Gas Generator is a high-precision calibration device that uses permeation tubes and diffusion tubes to produce accurate and stable calibration gas for gas detection and monitoring systems. By maintaining a constant temperature, the system ensures a consistent release rate of both permeating and evaporating gases. With a steady flow of dilution gas such as air or nitrogen, the Permeater provides a continuous and reliable source of calibration gas, making it ideal for gas detector calibration, industrial gas analysis, and environmental monitoring applications.
Download CatalogInstruction ManualCalculation of the preparation conditionWhy Permeator Tubes?
| Continuous and Stable Calibration Gas Generation | The Permeater ensures long-term, uninterrupted calibration gas output with stable concentrations, minimizing manual intervention and eliminating the need for high-pressure gas cylinders. |
| Wide Range of Concentration Control | It enables easy generation of calibration gases across a broad concentration range, offering flexibility to meet diverse application and sensor calibration needs. |
| High Accuracy and Reliability | By relying on measurable physical parameters like weight loss and dilution flow, the Permeater delivers highly accurate, repeatable, and dependable gas concentrations for precision-critical environments. |
| Versatility in Calibration Gas Types | Capable of generating various low-concentration gases using permeation and diffusion tubes, the Permeater is compatible with multiple carrier gases and supports complex multi-gas calibration setups. |
| User-Friendly Automation and Interface | Equipped with a touchscreen interface and automatic flow calculations, the Permeater simplifies calibration workflows through real-time control, intuitive operation, and minimal user error. |
Key Feature
Delivers calibration gas continuously over extended periods
Offers a wide concentration range for diverse calibration needs
High accuracy is achieved through calculations based on permeation weight loss and controlled dilution flow
Applicable Detector Tubes
| Parameter | Details |
|---|---|
| Gas Generation Methods | Permeation tube & Diffusion tube |
| Dilution Gas Options | Nitrogen or Air |
| Flow Rate Range | 0.2 – 10 L/min |
| Flow Accuracy | ±13.2% (0.2–0.4 L/min), ±7% (0.4–1 L/min), ±3.7% (1–10 L/min) |
| Temperature Control | Range: (Room Temp + 5°C) to 50°C ± 0.15°C |
| Tube Holder Capacity | Standard tubes: 10 pcs. / H-size: 5 pcs. Diffusion tubes: D-10/D-20/D-30 – 1 pc; Multi-type – 4 pcs |
| Power Supply | 100–240 V AC, 50/60 Hz; Power Consumption: 160 W |
| Dimensions (W×H×D) | 250 × 340 × 315 mm (approx.) |
| Weight | ~14 kg (without water) |
| Accessories Included | Calibration tubing, dilution line, power cord, adapters, stopper, tube holder, funnel, spanner |
| Compliance Standards | EN61010-1, EN61326-1 (industrial), EN IEC63000 (RoHS) |
How to Use Permeater PD-1C
Filling and Setup
01- A diffusion tube with a fixed inner diameter is filled with a liquid substance (usually an organic solvent) using a syringe and maintained at a constant temperature.
Controlled Diffusion
02- At the set temperature, the liquid evaporates and diffuses at a constant rate, determined by the tube’s dimensions.
Continuous Gas Generation
03- A steady flow of dilution gas (like air or nitrogen) passes through the tube, mixing with the evaporated substance to continuously generate a low, stable concentration of calibration gas.
