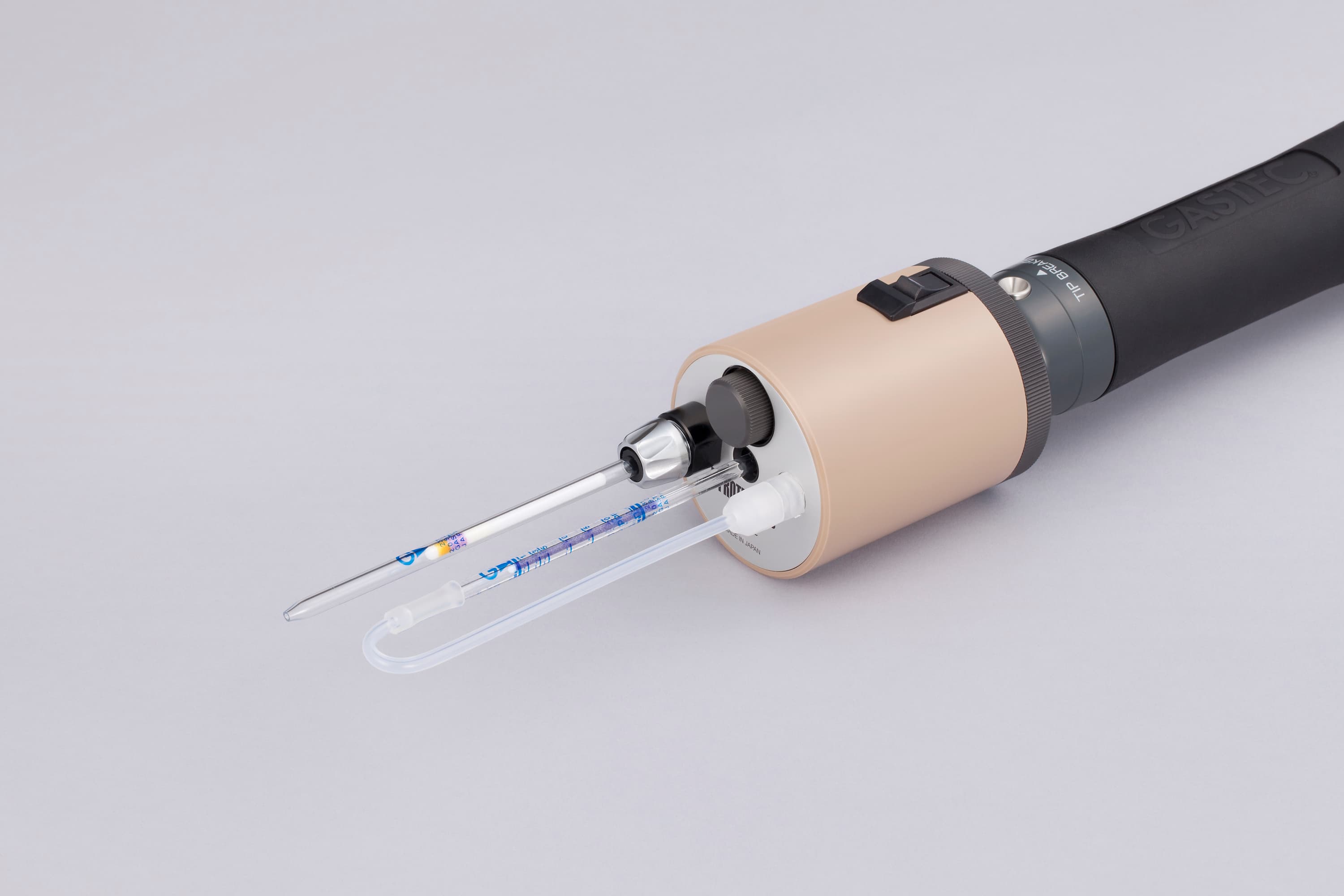

Pyrotec Pyrolyzer 860
Overview
The Pyrotec Pyrolyzer 860 enables precise measurement of Sulphuryl Fluoride by thermally breaking it down into a detectable gas. This compact unit attaches directly to a GASTEC sampling pump and uses pyrolysis to deliver accurate readings through specialized tubes, ensuring reliability in demanding environments.
Download CatalogKey Features
- Converts Sulphuryl Fluoride using thermal cracking (pyrolysis)
- Works seamlessly with GASTEC Pyrotec detector tubes (No. 231)
- Simple, no-tools-required operation—just attach to pump and sample
- Lightweight and compact—150 mm × 68 mm, lightweight
- Durable, corrosion-resistant construction
Technical Specifications
| Specification | Details |
|---|---|
| Power Source | 4 × AA batteries (not included) |
| Continuous Operation | ~2 hours per set of batteries |
| Filament Life | Up to 1,000 measurements (based on 20 mm Sulphuryl Fluoride usage) |
| Operating Temperature | 0–40 °C |
| Dimensions | Diameter: 68 mm; Height: 150 mm |
| Weight | Approx. 290 g |
Notes
- Tube No. 231 – Sulphuryl Fluoride
- Measuring Range: 1–20 ppm
- Direct-read scale within that range
How to Use Pyrotec Pyrolyzer 860
Setup
01- Insert the Pyrolyzer between your GASTEC sampling pump and the Pyrotec detector tube.
Power & Sample
02- Install 4 AA batteries, switch on, and begin sampling as per tube instructions.
Read Result
03- After sampling, read gas concentration directly from the tube.
- Replace filament after extended use (up to 1,000 samples).

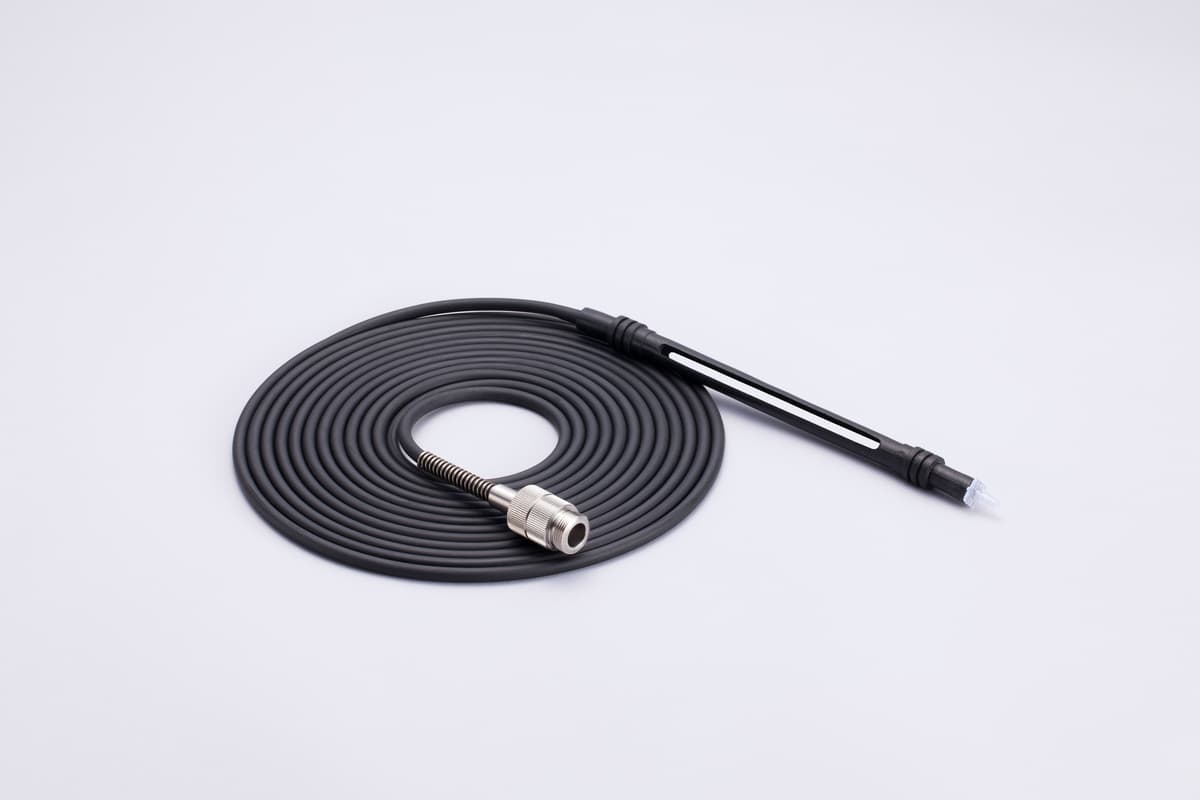

Need extension hoses for hard-to-reach areas?
Contact us to request pricing, replacement tips, or additional supplies.
